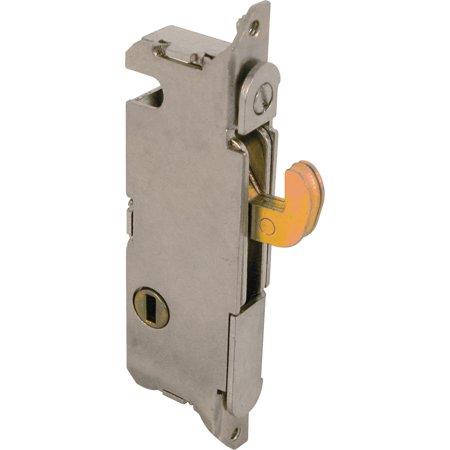

Mortise Lock 3-11/16 in. Hole Centers Vertical Keyway Position Steel Construction

This mortise lock is constructed of steel components with rounded faceplate ends. It features an adjustable spring-loaded hook latch projection and works with mortise style surface-mounted patio door handle sets with vertical keyway positions when in the locked position. The mounting hole centers of this lock measure 3-11/16 in. from center to center and the rear housing corners are square. This mortise lock is used by W and F patio door manufacturers and a variety of other manufacturers. *Selection Tip: To ensure the perfect match is selected prior to purchasing the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center 2) The faceplate ends; rounded or square 3) The position of the slotted keyway when in the locked position; at 45 degree angle or vertical and 4) The shape of the housing corners at the rear; square or slanted.
